Multigrid routing

Question

I made a Multigrid with 2 separate inputs and 3 tracks with different sounds for live processing (which I'll call Tracks 3 ,4 5.) I would like the sounds in Track 3 to be processed by the sounds in Track 4 and then Track 5. When I try to set this up with 3 different subpatches called FX, FX2 and FX3, I receive the following message: "Error: The value 2 was used to index nil, an instance of class Undefined Object. This index was out of bounds for this object."

I am running a Paca. Do I need to buy a Pacarana? Or am I routing my submixes unwisely?
Here are a couple of screenshots.

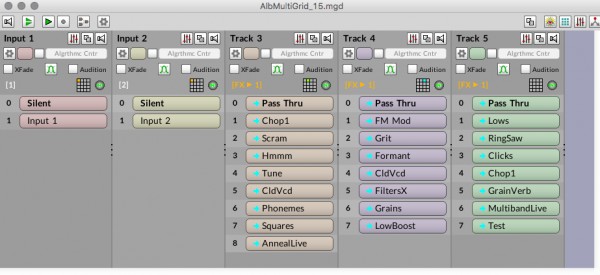

This works:

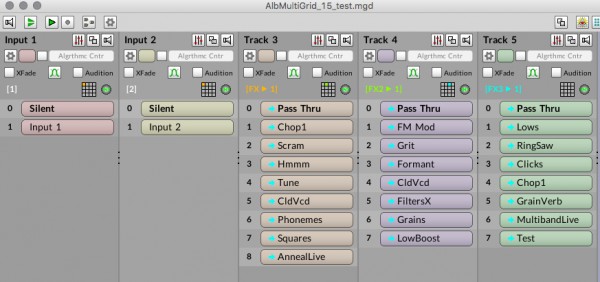

This does not work:

Here's the Multigrid:

http://kyma.symbolicsound.com/qa/?qa=blob&qa_blobid=2746214263642060395

Thank you experts!





Answer 1

Here's a revision that works:

http://kyma.symbolicsound.com/qa/?qa=blob&qa_blobid=6134621519606008461

In FiltersX (Trk4), the Replicator and the Prefixer should both share the Audio Input. That way, when you substitute a complex signal flow for the Audio Input, they are not trying to rename and replicate all of the EventValues in the complex input.

Comments

Works!
I see that you took out the Anneal in Track 3 and Multiband in Track 5.
When I put the Multiband back in, the Multigrid still works.
Was there a reason why you took them out?

---

One of them was running out of real time so I removed them (evidently it was the Anneal and not the Multiband).
