How can I translate Desmos graphs to Polynomial functions in Kyma?

0 votes
There is a great tool online for graphing functions, and I wanted to use it to design some lookups or realtime polynomials in Waveshaper.

I would like to work with this one

I made a grapher that interprets the coefficients field of the Waveshaper...
asked May 26 in Using Kyma by cristian-vogel (Master) (7,500 points)
edited May 26 by cristian-vogel

1 Answer

+1 vote

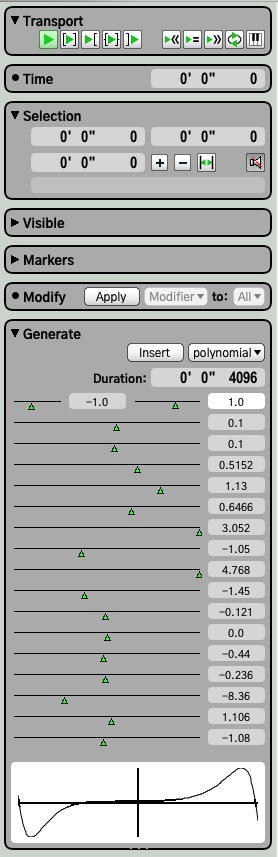

In answer to your question, one way to generate a waveshaper from polynomial coefficients and save it as a lookup table is in the Wave Editor, using the Generate section with "polynomial" selected. Here's an example with the range set to [-1,1] and the coefficients set to varying strengths:

Once you get the shape you want, click Insert and save the result as a sample that you can use as the ShapingFunction parameter of the Waveshaper prototype.

For anyone curious to hear and see the impact of varying the coefficients of the polynomial waveshaper while it is shaping a sine wave input, you might enjoy experimenting with this example from the Kyma Sound Library:

/Kyma/Kyma Sound Library/Teaching demonstrations/Waveshaping lab

And if you get interested in waveshaping, try using the Sound Browser to search the Kyma Sound Library by Sound name 'wavesh' for a whole bunch more fun applications of waveshaping like wave folding.

Or search by Sound class name for "inputout" to find examples of the InputOutputCharacteristic which is a more general form of waveshaping (not limited to polynomial functions) and can be used for all kinds of fun distortions (of waveforms, amplitude envelope, or even rhythmic patterns and pitch distributions).


answered May 26 by ssc (Savant) (106,860 points)
thanks, although I do know all about thse features.... but I was specifically needing some formulas for a project I am doing with a friend, and he is using Desmos to plot functions. We use IOCharacteristic all the time at NeverEngineLabs , but its worth mentioning that it can be quite heavy in DSP especially when replicating, that is why a rendered wavetable function can be very useful
