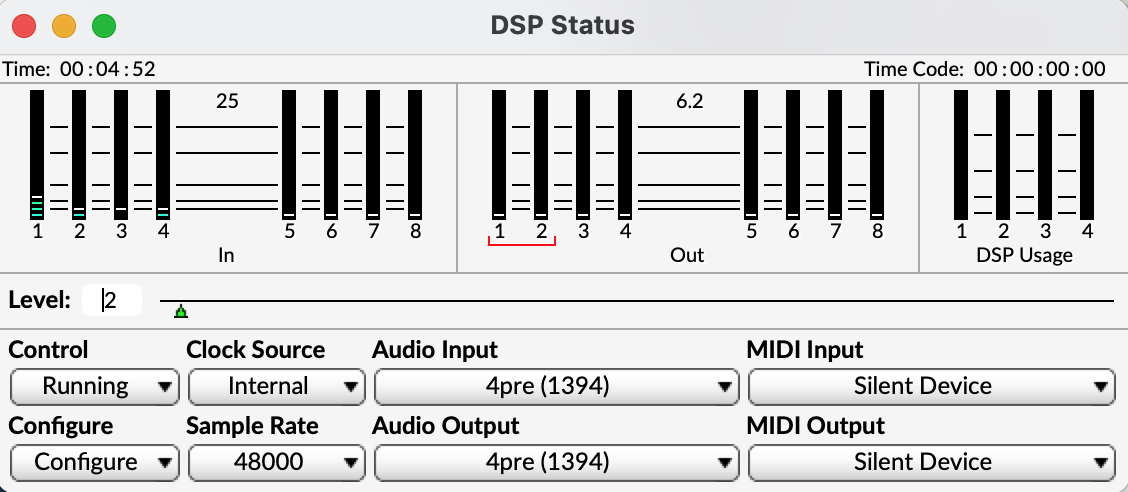

On DSP Status window: what does the red bracket under Channel 1 and 2 mean?

0 votes
332 views

I haven't seen this before. I have tried two different interfaces to see if that was the cause, mais non.

Checked Speaker Placement preferences to Quad, checked Route Outputs, all good...but everything is stereo.

Must be something obvious... ?

asked Aug 26, 2022 in Using Kyma by andrea-young (210 points)

1 Answer

0 votes

Best answer

If you are using a Timeline, check the Audio drop-down menu. Under the Stereo mix-down option, select Turn-off. If there's a red bracket under output channels 1 and 2, it's an indication that the Timeline is getting mixed down to stereo.

Also in Edit>Preferences Speaker placement, at the bottom of the dialog, there's an option to perform a Stereo mix. If this is selected and you play a Sound with more than 2 outputs, the red bracket appears in the DSP Status to alert you that multiple channels are being mixed down to a stereo output.

answered Aug 26, 2022 by ssc (Savant) (128,000 points)
selected Aug 27, 2022 by andrea-young
Yes – in the Speaker Placement preferences drop-down menu: mix-down was stereo. Fixed, thanks! :)
...
